Cable Ladders
Heavy-Duty Support for Demanding Cable Installations
UTG cable Ladders

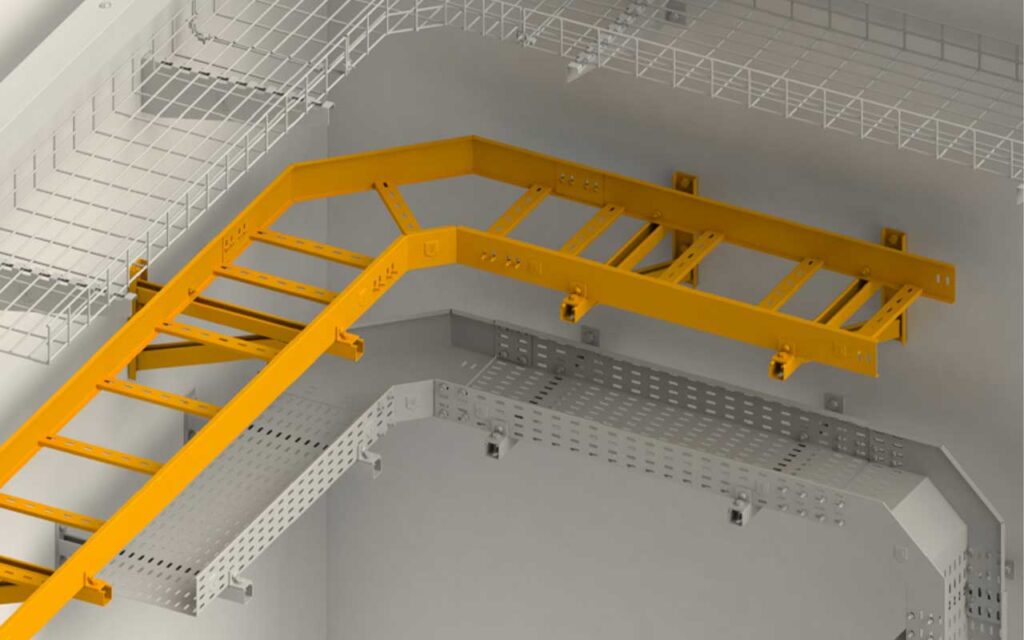

Cable Ladders
UTG offers a robust range of Cable Ladder Systems designed for high-capacity cable routing in industrial, commercial, and infrastructure environments.Engineered for strength, durability, and flexibility, our cable ladders are ideal for supporting heavy electrical cables over long spans while ensuring ventilation and maintenance accessibility.
Range consist of the systems commencing with 100mm deep , up to 150 mm deep, all with a wide offering of accessories. (2.0mm thick side rails). Pre-galvanised standard distribution trunking & lighting trunking, available in single & multiple compartment options. Available in widths and depths upto 225mm as standard.
Features :
• Manufactured from steel complying with BS EN 10025 – 2:2004
• Hot Dip Galvanised after manufacture to BS EN ISO 1461 :1991
• Rungs alternatively reversed as standard at 300mm maximum centers.
• Complies with BS EN 61537:2007
• Also available in Stainless steel grade 316 L complying with BS EN 10088 – 2:2005
Standard Finishes :
HDG – Hot dip Galvanized to BS EN ISO1461:1999 (Formerly BS 729)
PG – Pre-galvanized to BS EN10142 &10143
PC – Powder Coating to suit clients requirements
SS – Stainless steel finish to required grades
ALM – Aluminium Alloy
Accessories & Fittings
We provide a full range of modular fittings for cable ladders, including:
- Horizontal & Vertical Bends (Inside/Outside)
- Tees, Crosses & Reducers
- End Plates, Clamps, Couplers & Covers
Radius Bends & Drop-outs for sensitive cable support
Accessories are manufactured with matching finishes and tolerances for smooth, secure installation.
